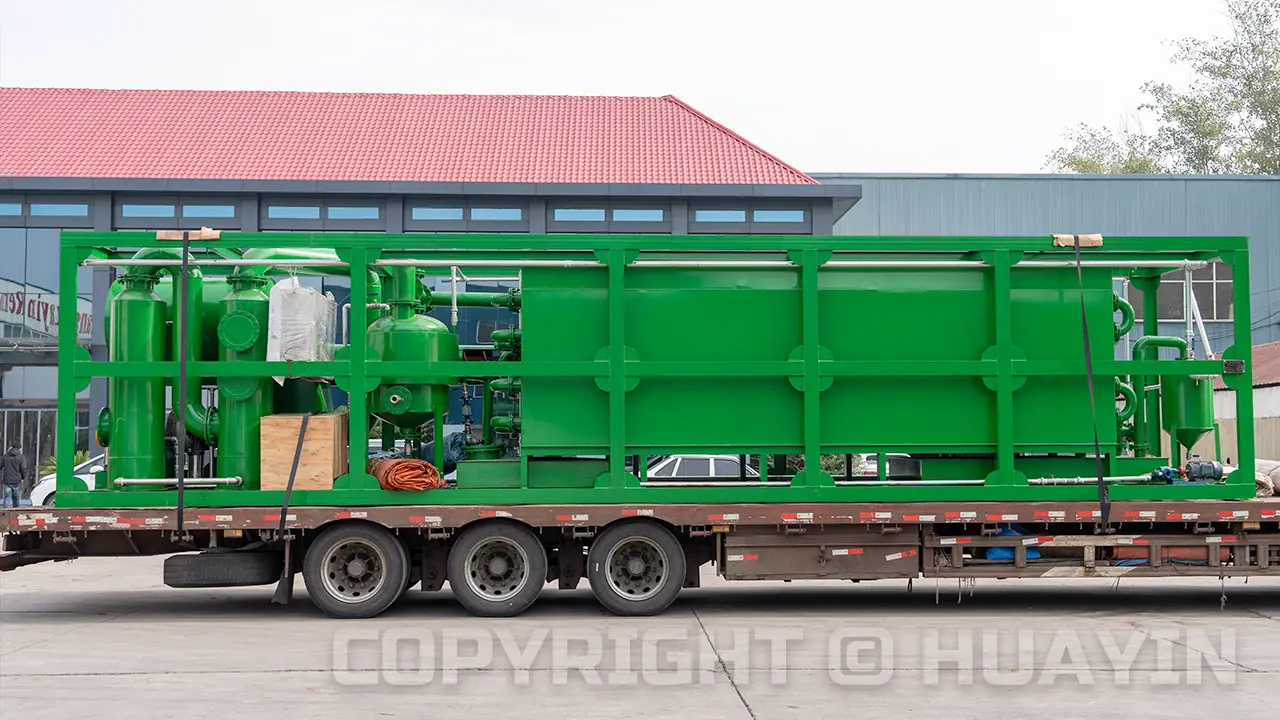

After the pyrolysis process, the gases and vapors produced need to be cooled and condensed to convert them into liquid form. The condensation system typically consists of a series of heat exchangers or condensers that utilize cooling mediums like water or air to extract heat from the gases and vapors. This condensation process allows for the collection of liquid products, such as fuel oil.

The solid residue or char left after the pyrolysis process, commonly referred to as carbon black, needs to be collected and managed. The plant may include mechanisms for its extraction, such as screw conveyors, to transport the carbon black to storage or further processing facilities.

It’s responsible for cleaning and purifying the exhaust gases generated during pyrolysis. It includes scrubbers and filters to remove impurities, particulate matter, and potentially harmful emissions from the gas stream. This system helps to comply with environmental regulations and ensures the safe operation of the pyrolysis plant.
